Product Introduction:

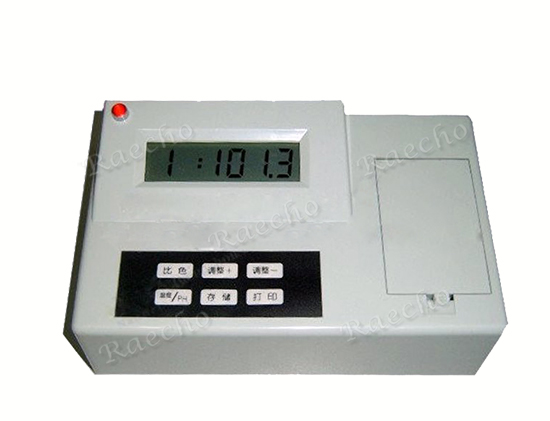

1. Micro-computer functional nutrient tester
　Its a main component , including host instrument、filter、color plate , and so on .
2. Glassware :Volumetric flasks, scale straw, triangle flasks, funnel, distillation tube, absorption bottle, and so on .
3. Tray Balance :It is a weighing instrument , inductance is 0.1g . Better if you can use balance with inductance for

0.01g, it can improve testing accuracy.
4. Pharmacy and powder : More than 20 kinds of liquid pharmacy and powder , it can analyze more than 100 soil

samples. all pharmacy is enough and available except for distilled water and ethanol when testing samples .
5. Others : Calculator, Filter paper, washing ear ball, aluminum box , it can finish test without any laboratory equipments.

Testing Items :
1.) Hydrolytic nitrogen、ammonium nitrogen、nitrate nitrogen、available phosphorus、available potassium、

organic matter、PH in the soil .
2） N, P, K fertilizer and urea、ammonium nitrogen、nitrate nitrogen、available phosphorus、available potassium in

complex ( mixed ) fertilizer .
3.)  Nitrate nitrogen, phosphorus and potassium in plants .
4.)  Others : Middle、trace elements Ca、Mg、Cu、Fe、Mn、B、Cl、S and so on .

Technical Index :
1. Power :  220V±22V for AC ;  12V for Battery (  DC ) .
2.     Measuring range and Resolution (0.001 – 9999 ) :
9999μg /mL,   resolution 1μg/mL (1μg/mL≈1ppm≈Lmg/kg) ;
999.9μg/mL,   resolution 0.Lμg/mL (1μg/mL≈1ppm≈Lmg/kg) ;
99.99μg/mL,   resolution 0.01μg/mL (1μg/mL≈1ppm≈Lmg/kg) ;
9.999μg/mL,   resolution 0.001μg/mL (1μg/mL≈1ppm≈Lmg/kg) .
3. Stability : Displayed drift number is less than 0.5 % (A) , (transmittance measurement) within 3 minutes after

powering on for 20 minutes .
4. Repeatability error : Error is less than 0.4% (A) ( testing in potassium dichromate standard solution, 2000μg /mL ) .

( transmittance testing ) .
5. Linear error :
≤ 3% ，（30，90,150,180μg/mL Potassium dichromate solution）
6. Power consumption : ≤ 5W (DC).
Size and Weight :
Box for pharmacy and powder :  410mm x 320mm x 180mm ; Weight : 4.7 kgs.
Box for Instrument : 410mm x 320mm x 120mm ; weight : 3.1 kgs .

Testing speed :
It’s about 1 hour when testing fertilizer, hydrolyzable nitrogen, ammonium nitrogen, phosphorus and potassium
