Imaging Mode:
B
B/B
B+M
M
CFM

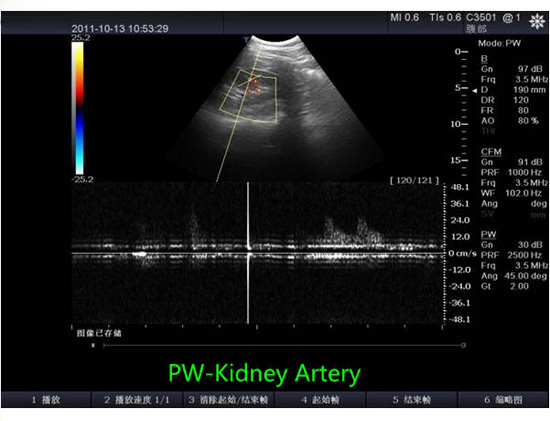

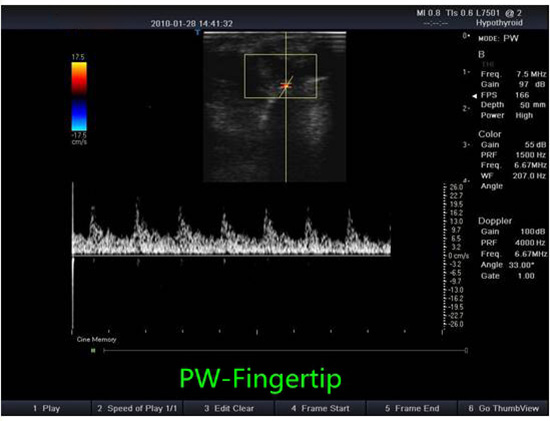

PW
CDE
CCD
HPRF

Advanced Technology Support:
Gray scale: 256
15"/17"/19" high-resolution non-interlaced monitor, special for medical imaging
Transducer frequency: 1.0 ~ 14MHz
Transducer connector: 4
Imaging Technology: Continuous High-precision Digital Beam-former
Dynamic Frequency Integration Imaging
High-precision Dynamic Receiving Focus
Super Wide-band Imaging Technology
Self-adaptive Image Optimization Processing
Multi-beam Imaging
Self-adaptive Vascular Imaging
Self-adaptive Doppler Imaging
THI (Tissue Harmonic Imaging)

Image Processing
Pre-processing: 8-segment TGC
gross gain
dynamic range
gray map
smooth
acoustic power adjustment
scanning angle selection

Measurement & Calculation
B-mode: distance, circumference, area, volume, angle, residual urine volume,histogram, profile
M-mode: distance, time, velocity, heart rate
D-mode: doppler blood flow measurement, velocity, acceleration, pressure gradient, time, VI, PI, RI, etc

Software Packages:
GYN uterus, endometrium, ovary, cervix, ovarian follicle
OB GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD,
APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc
Cardiac M. Simpson, B-EF、M-EF（Pombo、Gibson、Teichholz）, Diameter
Function, PV flow, AV-Area, B-LV/Ao、M-LV/Ao, MV Regurg, etc
Urology volume of prostate, volume of bladder, volume of urine, volume of trans zone, HipJ.Angle（hip joint

dislocation in neo-natal and babies）、slice v, etc
Small Parts and Peripheral Vessels
vascular cross-sectional area, heart rate, stroke volume, flow per unit time, Ejection Time, % stenosis,

mean velocity of flow, RI, PI, etc.


Standard Configuration:

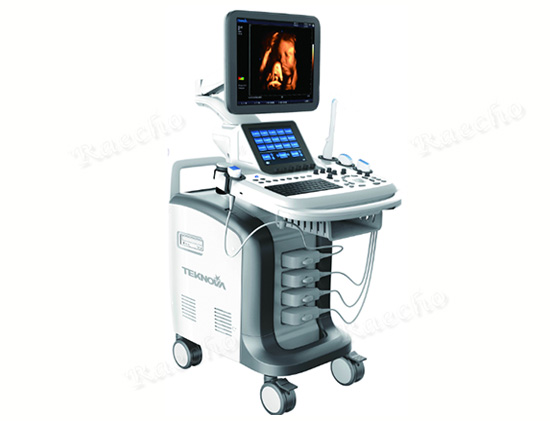

TH-5500 main unit
15" high definition non-interlaced LCD monitor, special for medical imaging
Three activated transducer connectors
Min. 512-frames of Cine Loop
THI
Triplex

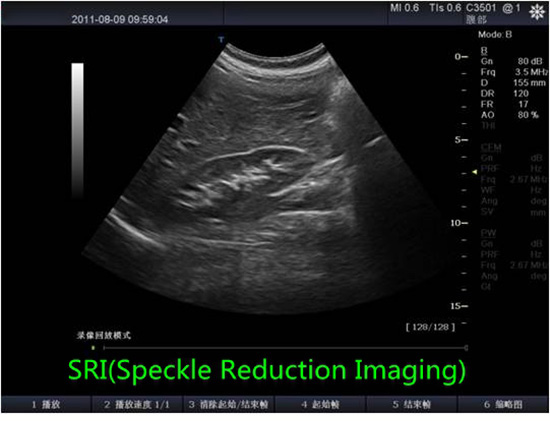

SRI (Speckle Reduction Imaging)
One Click Restoration of O/S
500GB HDD for permanent storage
DVD-R/W
Two USB ports
DICOM 3.0
Panoramic zoom
Measurement & calculation software packages
SVVR (super volume video recording up to 1 hr)
Electronic convex array transduce
Electronic linear array transducer

Options:
Electronic linear array transducer
Electronic linear array transducer
Phased array transducer
Electronic endocavity transduce
Electronic micro-convex array transducer

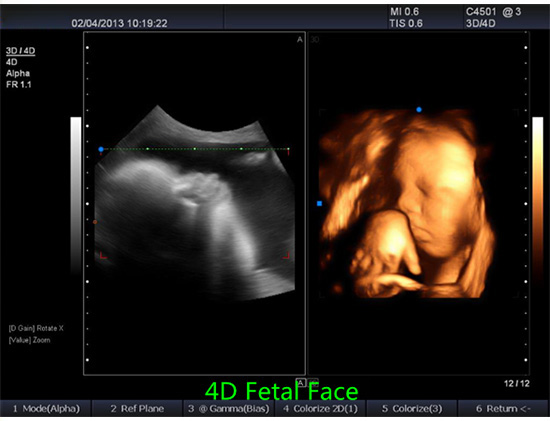

4D Package [Volume transducer + 4D software]
Freehand 3D Software
17"/19" high definition non-interlaced LCD monitor, special for medical imaging
