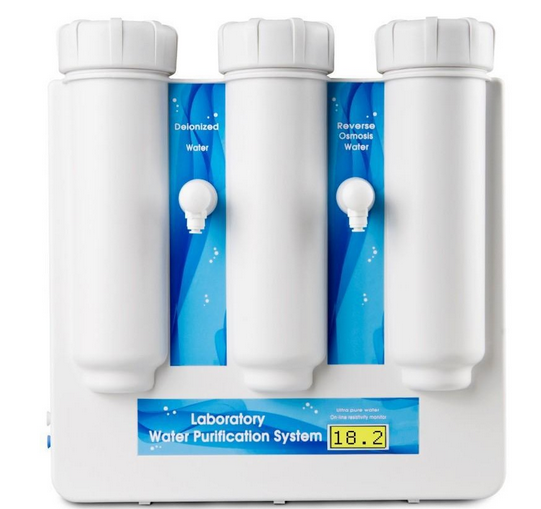

-Professional Water purifier produce RO and DI water, widely used in hospital, research lab, industry, university, etc.
-Automatically power on and power off according the water inflow or water outflow.
Model
RWP-II
RWP-III
Flow procedure
PF+AC+RO+DI
PF+AC+RO+DI
Application
Buffer disposing;
Physical and chemical analysis
Fine chemistry industry;
GC/HPLC
Inlet water for Ultra-pure water machine
Aseptic drinking water
Feed water requirement
Tap water: TDS<200ppm,5-45°C,1.0-4.0Kgf/cm2
(if inlet TDS>200ppm,extra pretreatment is recommended)
Purification
system
Pretreatment
unit
Special spun
fiber filter×1 + Special active carbon block filter×1 + Special active carbon
block filter×1
RO unit
100GPD RO membrane×1
100GPD RO membrane×2
Subsequent
unit
Mixed bed
resin cartridge×2
Mixed bed
resin cartridge×3
Pure
waterquality
Desalination
rate
Nearly 100%
TDS
RO water:5-10 ppm
Resistivity
15-18.2MΩ.cm
Conductivity
0.067-0.055μs/cm
Output (25°C)
15 liters/hour
30 liters/hour
Flow rate
2 Liters/min(with pressure tank)
Pure water
outlet
RO water, deionized water
Control system
Automatic
electronic pressure sensor, RO membrane auto flushing, automatic stop without
water, automatic stop when water tank full, automatic cutting off if pump
stopping, Guaranteeing 24 hours' work.
Water quality
test
TDS test pen +on-line resistivity monitor
Power supply
AC110-220V,50/60Hz, 48W plus model:72W
Package size
L×W×H:41*22*42cm/12-14kg
Standard
configuration
Main body
(including: 1 set cartridge) +4.0 gallon water tank + TDS pen accessory box
