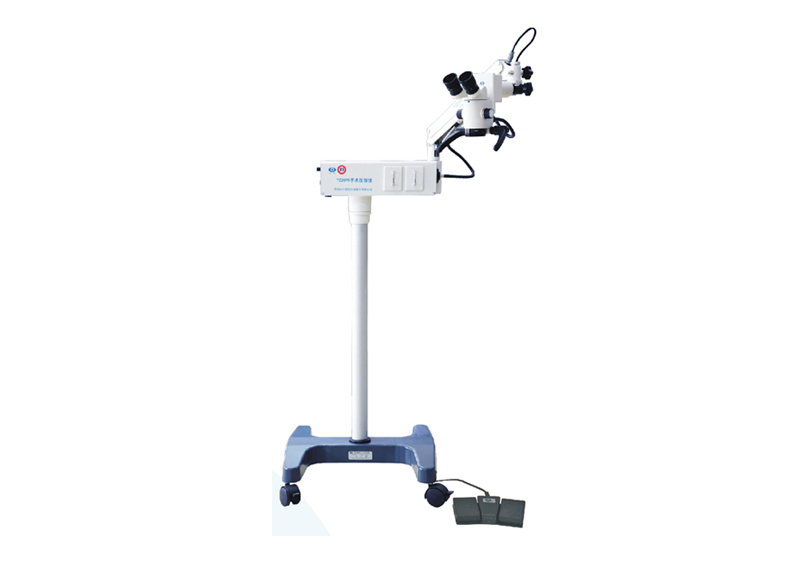

products name: RYZ20P5 Operation Microscope



Features


◆Multi-layer coating technology is used on optical lenses to enhance transmission rate and prevent mildew.
◆Foot controlled focus, three-step magnification change, good depth of field of view and good binocular fusion to meet the need of cataract surgery.
◆Using apochromatic technology to make different wavelengths of the light focus near the focal point behind the lens, so as to make the operator's vision more clearly.
◆The machine weights only 41Kg to be light and compact and is especially applicable for the mobile medical.
◆Optional desktop components to make the machine more portable and can also be customized according to special requirements to meet the needs in ophthalmology, ENT and other surgery.
◆Optional F250/F300/F400 lens.







Specifications

Eyepiece Magnification

12.5×

Focal Length of Objective Lens

F=200

Working Distance

190 mm

Magnification for Main Microscope

5.3×, 8×, 16×

Diameter of Field

37 mm, 25 mm, 16.7 mm

Diopter Adjustment

±5D

Pupilary Distance

50 mm  70 mm

Maximum Resolution

100 LP/mm

Light Source

12V/100W halogen lamp for medical use

Illumination Type

 6° coaxial illumination of cold light source

Coaxial Illuminance

30,000 Lx

Reaching Radius of Arm

870 mm

Adjustable Vertical Range

700 mm~1100 mm

Fine Focusing Range

30 mm

Input Voltage

AC 220V/110V±10%, 50Hz/60Hz

Power Consumption

120 VA

Fuse

AC 250V   T4.0A, AC 125V  T8.0A

Electrical Safety Standard

IEC 60601-1, Class I

Packing Volume

0.2 m31 carton

Total Weight

41 kg
