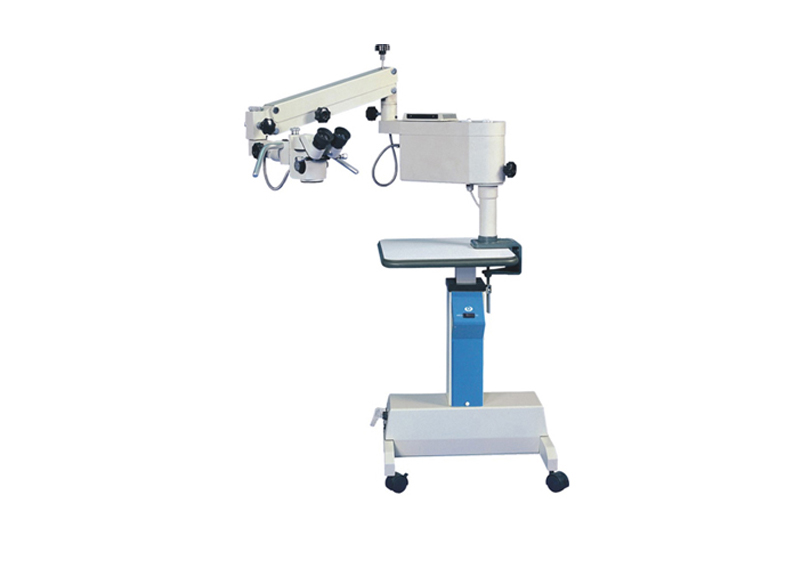

products name: RYZ20P Operation Microscope





Specifications

Eyepiece Magnification

12.5×

Focal Length of Objective Lens

f=200

Working Distance

190 mm

Magnification for Main Microscope

6×, 10×, 16×

Diameter of Field

37 mm, 25 mm, 16.7 mm

Diopter Adjustment

±5D

Pupilary Distance

50 mm  70 mm

Maximum Resolution

100 LP/mm

Light Source

12V/100W halogen lamp for medical use

Illumination Type

 6° coaxial illumination of cold light source

Coaxial Illuminance

10,000 Lx

Reaching Radius of Arm

860 mm

Adjustable Vertical Range

850 mm~1100 mm

Input Voltage

AC 220V/110V±10%, 50Hz/60Hz

Power Consumption

120 VA

Fuse

AC 250V   T4.0A, AC 125V  T8.0A

Electrical Safety Standard

IEC 60601-1, Class I

Packing Volume

0.283 m32 carton

Total Weight

61 kg
