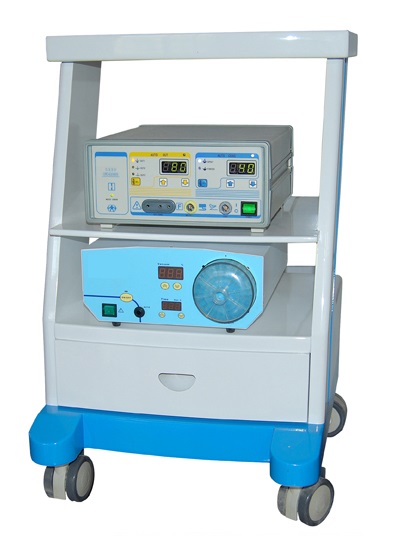

products name： RAE-ESU-L2000

Specifications: -Microcomputer control -The generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery. -Dealing with some kinds of pathological changes in obstetric and gynecology,   for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope. -Different electrodes have different effects in coagulation. -An optional smoke evacuation system is available. -Particular illuminating ESU pencil can increase the clarity of wound healing.   Technical Specifications: Power: 220V±22V(110V±11V), 50Hz±1Hz Operating frequency: 360～460kHz Power rating: 880VA±10％   Five working modes: --Monopolar Cut a) Cut1 (pure cut)：1W～200W( Load 500Ω) b) Cut2 (Blend1)：1W～150W(Load 500Ω) c) Cut3 (Blend2)：1W～100W (Load 500Ω) --Monopolar Coag d) Coagulation1(Spray Coag)：1W～120W( Load 500Ω) e) Coagulation2(Forced Coag)：1W～80W( Load 500Ω) --Power Consumption : ≦880VA(Cutting function 200W)   Surgical Smoke Evacuation: -Blowing rate: 100 l/min @ 6mm tube -Noise: <60dB(A) -Start Control: Manus/Foot/Synchronize -Suction Adjust: 10%~100% -Stop delay time: 0~60s -AC Power: AC90~250V, 50Hz -Power consumption: < 350W -Filter Characteristics: 99.999% @ 0.1-0.2μm -Active Carbon: 97% @ 1 year   Add to Enquiry List Add to Enquiry ListCall for Price
