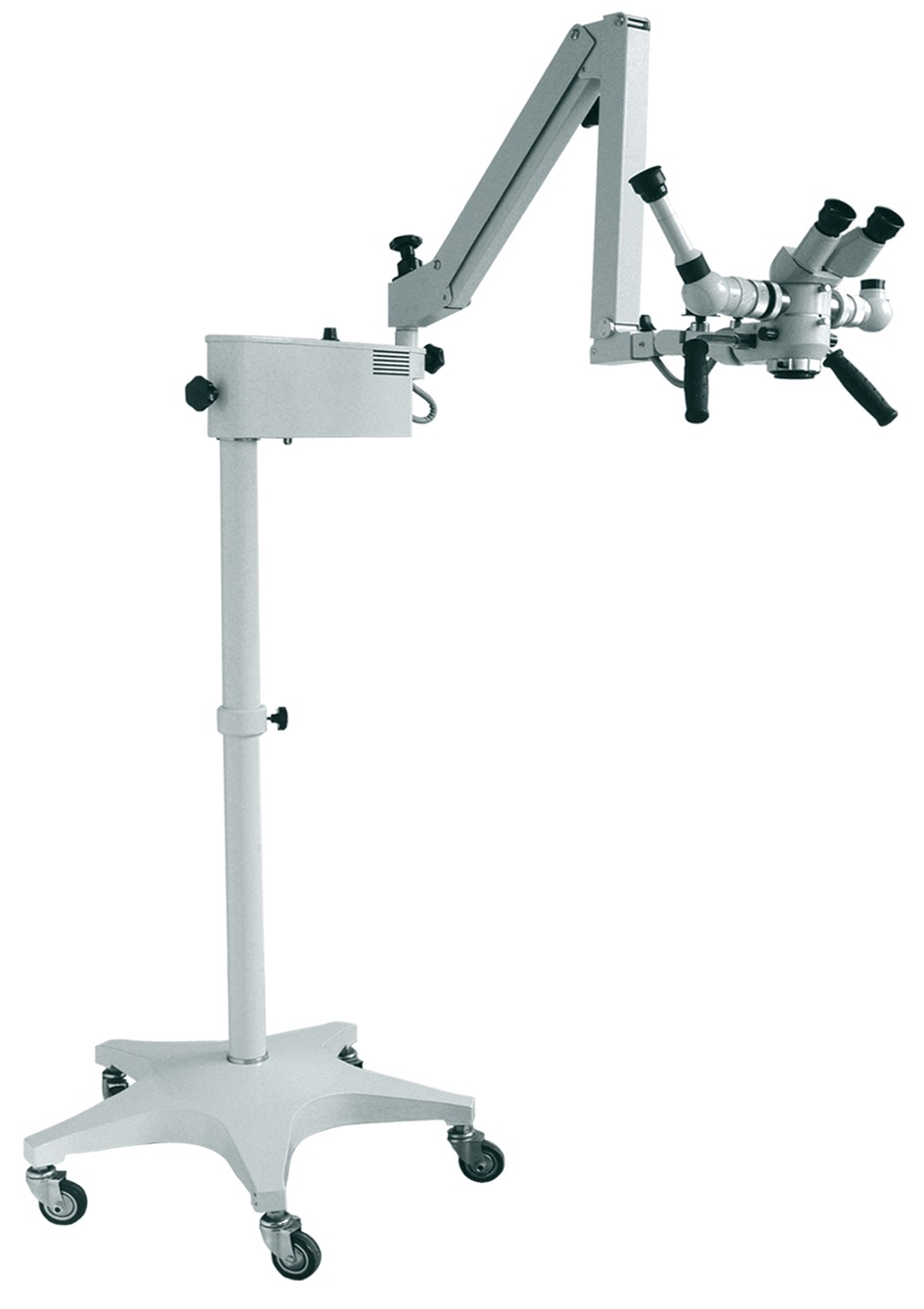

products name: ROM-130



ROM Series Operating Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy Operating. These Operating microscopes can be used for micro-Operating in ear-nose-throat, ophthalmology, gynecology and surgery.

Observation angle: 45°tilted
Magnification of observation: 6X
Interpapillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Fiber-optic cable: 1700mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With beam splitter and TV adapter, C-mount 1/3 inch CCD camera attachable
With 2-part arm, counterweight adjustable and can be locked
With floor stand.
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Demonstrator, Camera (MDCCC200, MTV-73X10, MTV-73X10H, DC-200, VGA200), Photo adapter, Monitor H1766, Objective F=250mm & F=400mm
