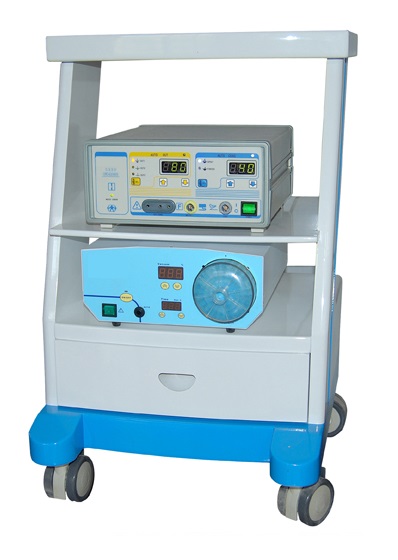

products name: ESU-L2000



Specifications:
-Microcomputer control
-ESU-L2000 (LEEP) generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.
-Dealing with some kinds of pathological changes in obstetric and gynecology,   for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.
-Different electrodes have different effects in coagulation.
-An optional smoke evacuation system is available.
-Particular illuminating ESU pencil can increase the clarity of wound healing.

Technical Specifications
Power: 220V±22V(110V±11V), 50Hz±1Hz
Operating frequency: 360~460kHz
Power rating: 880VA±10%

5 working modes
--Monopolar Cut
a) Cut1 (pure cut):1W~200W( Load 500Ω)
b) Cut2 (Blend1):1W~150W(Load 500Ω)
c) Cut3 (Blend2):1W~100W (Load 500Ω)
--Monopolar Coag
d) Coagulation1(Spray Coag):1W~120W( Load 500Ω)
e) Coagulation2(Forced Coag):1W~80W( Load 500Ω)
--Power Consumption : ≦880VA(Cutting function 200W)

Surgical Smoke Evacuation
-Blowing rate: 100 l/min @ 6mm tube
-Noise: <60dB(A)
-Start Control: Manus/Foot/Synchronize
-Suction Adjust: 10%~100%
-Stop delay time: 0~60s
-AC Power: AC90~250V, 50Hz
-Power consumption: < 350W
-Filter Characteristics: 99.999% @ 0.1-0.2μm
-Active Carbon: 97% @ 1 year





Packing List:

Mainframe

1set

Electrosurgical pencil

3pieces

Illuminating electrosurgical pencil

2pieces

Electrosurgical pad

10 pieces

Electrosurgical pad cable

1piece

Foot switch

1set

Electrodes

1case(10pieces)

Tip clean sponge

1piece

Fuse

3pieces

Power cord

1piece

Operating manual

1book
