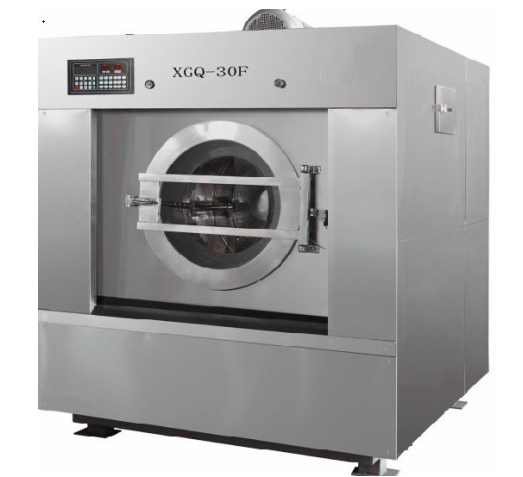

products name: XGQ Washer Extractor



XGQ Series Automatic Washing Machine (Washer Extractor)


1. Fully automatic, microcomputer-controller, freely programmable, 30 possible programs, operator could set flexible.
2. High quality stainless steel, good appearance, long life.
3. Full suspension shock structure, low shake, low noise, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
4. Imported bearing, precise and durable.
5. Fixed screws support for long-distance transportation, avoid shaking damage during transit.
6. High quality inverter system, easily realize washing and extracting frequency stepless adjusting.
7, Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system, reduce fatigue, misuse and the risk.






Model

XGQ25F

XGQ30F

XGQ-50F

XGQ-70F

XGQ-100F

Capacity

(kg)

25

30

50

70

100

Drum Dimension

(mm)

Φ800x545

Φ905x500

Φ1065×628

Φ1200×600

Φ1200×820

Drum Volume

(L)

274

321

559

678

930

Drum Speed

(r/min)

46/750

40/750

38/720

38/700

38/650

Voltage

(V)

220/240/380/415/440

Outer Cylinder

(SS304)

Fully stainless steel

Inner Cylinder

(SS304)

Fully stainless steel

Motor Power

(kw)

3

4

5.5

7.5

7.5

Inverter Power

(kw)

3.7

5.5

7.5

11

11

Hot Water Pipe

(inch)

3/4

1

11/4

11/2

2

Cold Water Pipe

(inch)

25mm/65mm

1

11/4

11/2

2

Air Pressure

(MPa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Dimension

(mm)

1120x1100x1600

1340x1360x1722

1640×1570×1912

1750×1540×2132

1750×1640×2132

Net Weight

 (kg)

700

1450

2200

2800

3100
