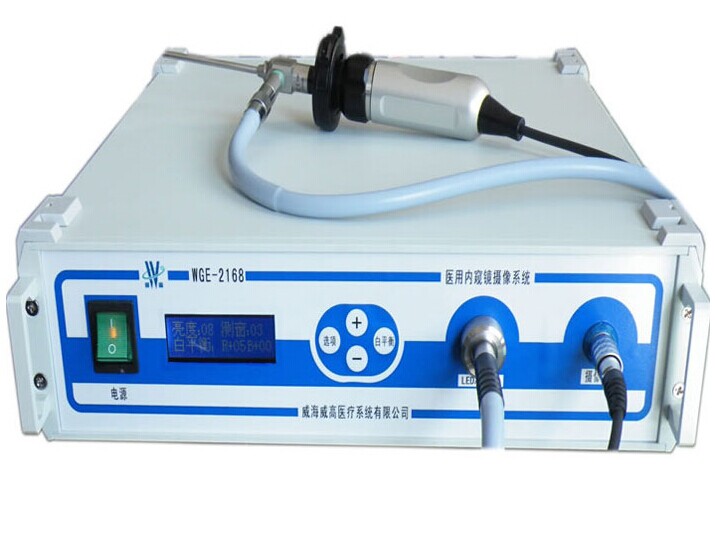

Features:

★ LED light source, no need to replace the lamp.
★ innovative high light output efficiency of high-brightness, the brightness reached clinical requirements.
★ Innovative camera white balance correction techniques, vivid colors.
★ innovative light source and camera integrated design, saving the user space.
★ innovative electronic lighting control technology area, as perfect endoscopic imaging of very fine quality.
Details ★ innovative enhancements, making the image details more clearly.
★ unique LCD display, more suitable for Chinese doctors to set parameters.
★ foot control image freeze, avoid image jitter.
★ Looking Glass interface adds the vent can be atomized water vapor to the lens surface.

Technical parameters:
CCD size: 1/3. "
Effective pixels: PAL system: 752 (H) X582 (V), 44 million pixels;
Horizontal resolution: not less than 480TV lines.
White Balance: Auto / Manual Image Brightness: 16 adjustable.
Minimum illumination: 1.5LUX SNR: 60db.
Video output formats: CVBS, 0.7v-1.2V-VPP.
Light type: LED light source. Color temperature: 5100K.
Source life: 50,000 hours. Like surface light intensity: ≥2000000LX.
Noise: less than 50db. Power: not more than 100VA
Power: AC 220V ± 22V 50Hz ± 1Hz.
Volume: 380 (L) x360 (width) x90 (H).
Weight: 5 kg.
Ambient temperature range: + 5 ℃ ~ + 40 ℃. Relative Humidity: ≤80%.
Atmospheric pressure range: 86.0kPa ~ 106.0kPa.
