ITEM DESCRIPTION

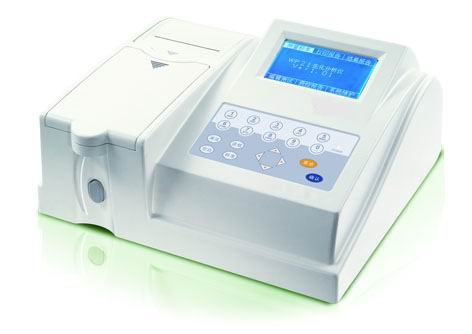

Veterinary Semi-auto Chemistry Analyzer

· Up to 250 test items

· 7 Wavelengths optic system Avoiding outer disturbance

(Wavelength: 340-700nm)

· Reagent open

· Low carryover

· Reaction curve display

Technical Specification

method

· Kinetic, End point, Linearity end-point, Non-linearity end-point, Absorbency, Sample blank, Multi-standards, Velocity, Calculation, Fixed Time, bichromatic etc.

Wavelength Range

• 7 Wavelengths optic system Avoiding outer disturbance,

• Wavelength range: 340 nm-700 nm;

• Filter Wavelengths: 340,380,405,492,510,546,578,630nm + 1 free position

• Wavelength accuracy: ± 2nm

Quality control

• Quality control for all tests,

• Statistic and print quality control parameters Automatically with QC curves;

• Program: Add or delete test items Easily selon the condition modify the test parameters;

• Display Dynamic curves at real time, visually react the process;

• Sleeping Automatically for the lamp to it's prolonged lifespan;

• Input 8 standard curves at MOST in testing with multi-standard method; • Open reagent;

Specifications

• Test items: ≧ 250

• Flow cell: quartz flow cell 32uL

• With Both shipping and cuvette system

• Lamp: 6V 10W PHILIP

• Measurement range: 0 ~ 2.5Abs

• Resolution: 0.001 Abs (display), 0.0001 Abs (calculation)

• Temperature control: Peltier 37 ° C, 30 ° C, 25 ° C ± 0.1 ° C

• Repeatability: <1% Data communication

RS-232 serial Port

Power Reuquirement

AC 220V ± 15%, 50-60Hz, 100W

Output

• Inner thermal printer

• External parallel printer

Display

LCD 240 * 128

interface

RS-232 serial Port

dimension

330mm X 355mm X 126mm (L * W * H)

Weight

8kg
