ITEM DESCRIPTION

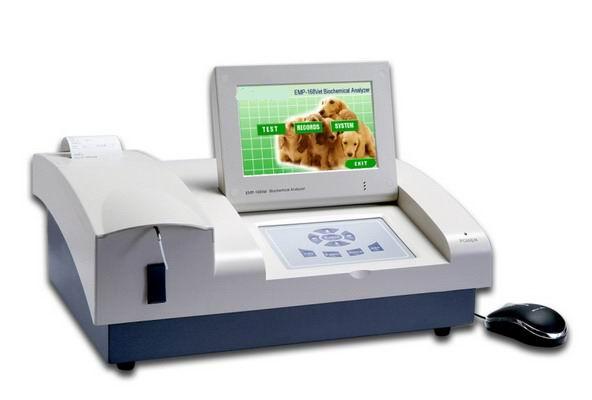

Veterinary Biochemical Analyzer

detail:

● Application: veterinary clinics, pet or animal Hospitals research institutions, etc.

● 8 species of animals available and 8 Additional species for user to customize.

● Professional design insured your convenient operation and accurate measurement.

● Friendly man-machine interface based on Windows CE.NET

● Touch screen, external keyboard and mouse supported

● Multi-language version Such as Chinese, English, Russian, Spanish etc.

● Built-in thermal printer and external printer based on USB interface, the Supporting on-line printing, multiform reports.

● Measure methods include End-point Two point kinetic, reagent blank sample blank, immunity nephelometery, and multiplicate selectable calibration methods, Such as multi-standards, linear or non-linear calibration curves etc)

● Perfect QC function Including multifold QC graph, QC parameters

calculation, dual-level QC and out of control alarm.

● Power-on self-test and malfunction alarm

● Real-time display absorbance curve.

● Prolonged light source and filter useful-life by bright light source protection

● Communicate with PC through RS232 interface.

Technical Specifications

Wavelengths: 340nm, 405nm, 505nm, 546nm, 578nm, 620nm, 670nm

(one filter can add)

Wavelength Accuracy: ± 1nm

Band width: 8nm

Light source: Halogen-tungsten lamp, 6V / 10W

Flow cell: 32ul quartz / metal flow cell

Absorption range: 0.000 ~ 3.000ABS

Resolution: 0.001ABS

Linearity: ≤1%

Cross Contamination Rate: ≤1%

(Sipping) / Aspirate volume:> 100 .mu.l

absorbency repeatability: CV≤1%

Operation temperature: Normal temperature, 25 ℃, 30 ℃, 37 ℃,

Temperature accuracy: ± 0.1 ℃

Memory: 200 test programs, over 100,000 test results

Display: 7 '' TFT touch screen adjustable pitch

Interface: RS-232, USB host, Ethernet network port SD slot

Power requirements: 100-250 V AC, 50-60Hz

Dimensions: 420 (W) X310 (D) X150 (H)

Net Weight: 8lbs
