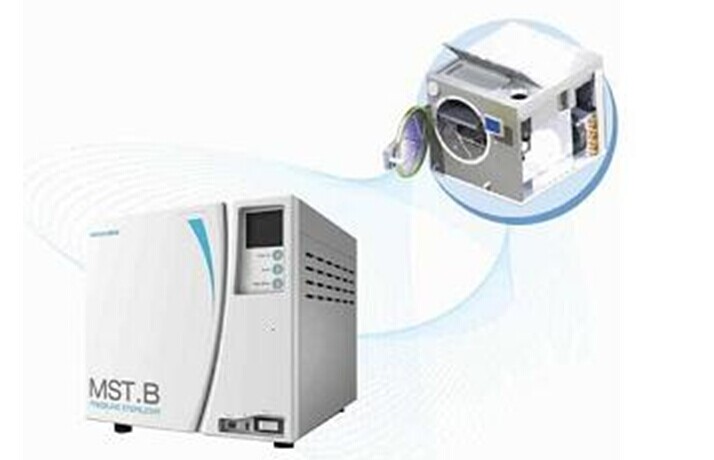

MST.B-23L type pulsating vacuum sterilizer, sterilization for Department of StomatologyDepartment of Ophthalmology, operation room, laboratory, and other places of goods,packaging, packaging, solid without, a hollow, class B, class B and hollow hollow internal pipelineinstrument sterilization of various, ensure efficient removal of hollow instruments (such as high-speed mobile phone the air inside the high temperature steam), can fully reach every corner.

Technical advantage:

The control system uses the high performance embedded microprocessor based on the special controller, its powerful function, accurate control flow, reliable performance.

Automatic water, heating, the pulsation, sterilization, drying, without manual supervision.

The creative use of domestic 60000 5000 color LCD display screen appearance, cleaning,touch type key.

Separation purification tank, sewage tank system that avoids the disadvantages of visualization,distilled water recycling, simple and convenient cleaning, to avoid the heat.

The independent rapid steam generating device, the whole process of fast program control in 30 minutes.

That is provided with 3-4 fixed sterilization procedures, 1 parameters can be set sterilization procedures for the user to choose.

★ with BD test, test procedures, vacuum, vacuum leak detection rate is less than 0.13Kpa/min.

★ built-in high quality water ring vacuum pump, 1-6 pulsating vacuum, vacuum degree can reach -0.09MPa (-0.9Bar), ensure the efficient removal of air dressing, disinfection bag and dental mobile phone within the gap, to reach the best steam saturation.

★ the internal configuration separator, can effectively avoid the phenomenon of wet pack,enhance drying effect and prolong the service life of the vacuum pump.

That the new fuzzy control heating, heating up fast, accurate temperature control, and can effectively save energy.

The heating pot wall silicone membrane, can preheat temperature reached quickly, andeffectively guarantee the effect of drying equipment.

The design has perfect fault alarm system, real-time display of all kinds of fault information.

The sterilization cycle over speakers tweet to prompt the user, at the same time, the LCD screendisplay cycle end.

Safety device:.

The door interlock device: the electronic door lock, only the doors closed in place, the sterilizercan start working procedure. Sterilization process is finished, the door will open automatically in place, the chamber pressure, the door cannot be opened.

The over temperature automatic protection device: with mechanical and electronic type doubleover temperature automatic protection function, equipment overheating is able to quickly cut off power of heater.

The overpressure automatic protection device: equipped with dual overpressure automatic protection device when the pressure is too high can fast relief, to ensure that the user andequipment safety.

The electrical safety device: DC control circuit with overvoltage and overload protection device,the AC main circuit with short circuit and leakage protection device.

Main technical parameters:

★ design pressure: 0.26MPa;

★ rated pressure: 0.23Mpa;

★ design temperature: 150 ℃

★ rated working temperature: 105 ℃ -136 ℃

★ temperature uniformity: ≤ ± 0.5 ℃;

The water requirement: distilled water or pure water

The cavity material: SUS304 stainless steel
