Technical parameters:

1 fast: the whole process time ≤ 45min;

2 cleaning tank capacity: 520L;

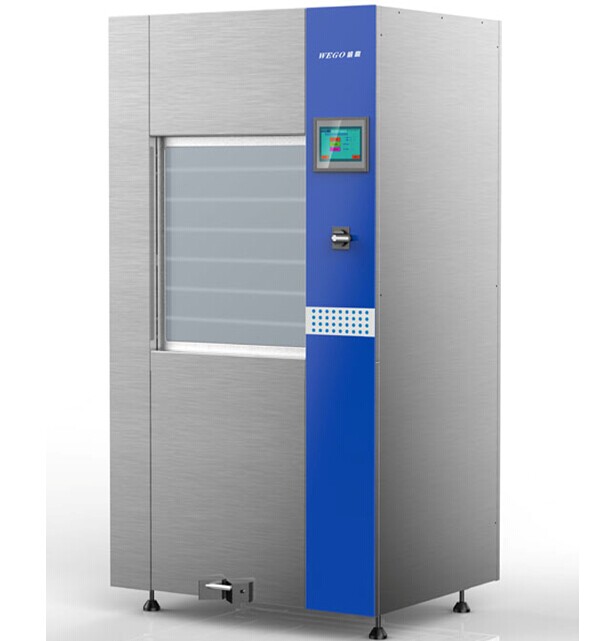

3 models: QK-Z- II (520L)

4 cleaning: 15 DIN standard tray (large) (length * width * height: 480*250*50mm)

5 weight (empty): 500kg

6 Structure: vertical

7 water consumption: 35L/

8 water heating: electric heating

9 hot water temperature: 50 ℃ of 93 ℃ cleaning, disinfection

10 dimensions (width x Height x): 1270x1870x1000mm

11 cleaning bin size (width x Height x): 696x1110x800mm

12 cleaning frame size (width x Height x): 652x630x764mm

The 13 part: the core components of pure import configuration

Technical advantage:

◇ cleaning, rinse rinse 1, 2, disinfection, drying, automatic operation of the whole process, the whole process (heating) time ≤ 45 minutes.

◇ motor sealing door adopts elevation of the glass doors. Channel type two door interlock function, ensure the effective separation between the clean area and clean area. And with asafety lock, obstacles can automatically return. Large windows double transparent toughenedglass door, sound insulation, convenient observation instrument cleaning state device.

Lifting the motor seal door use bilateral synchronous belt drive, stable and reliable operation,the automatic door open the door, the door with far infrared design Fangga hand, meets the obstacle pre alarm, no contact obstacles, to ensure the safety of personnel misoperation.

◇ control system Siemens PLC, Siemens color touch screen man-machine interface, simple and friendly user interface, and can set the parameters, to meet the needs of individual users.

◇ equipment with network interface and USB interface, can realize the interconnection andcleaning records U disk storage.

◇ equipment core components of circulating pump, fan, control systems, pneumatic valve, DCspeed reducer, a differential pressure switch, micro switch, metering pump adopt international famous brand, to ensure the stable operation of the equipment.
