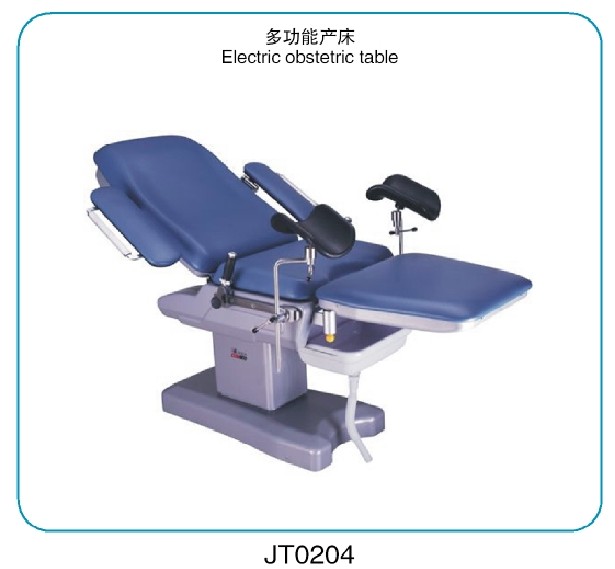

The obstetric table is new designed and manufactured to meet the need of the market. It absorbs the advanced foreign technology.

It is used for childbirth, gynecology surgical operation, examining and many other functions, including urgent caesarean operation.

The ascent and descent, forward and backward tilting of this set are manipulated by micro touching controller, of usage convenience and agility.

The key part of power system adopts imported electric motor, low in noise and stable in nature. Back section is controlled by electric.

Outer shells are made of engineering plastic, which makes nice appearance and easy cleaning. Available in a choice of colors of foot and soft mat.

Specs:

Table top dimension: length 1920mm, width610mm

Min.& Max. table height:790mm～1040mm

Trendelenburg & reverse trendelenburg: reverse trend ≥ 12°, trend  ≥ 12°

Back section turning:-5°～75°

Seat section turn up:0～15°

Assist platform dimension: length580mm, width610mm

Assist platform swing out: 0～90°

Arm rest swing out: ≥ 90°(can be at upright position as guard rail)

Filth basin dimension:468×338×125mm(can be equipped with soft pipe)

Power: AC 220V 50HZ

Standard accessories

Waterproof cushion             1 set

Waist grab handle              1 pair

Leg holder                    1 pair

Filth basin                    1 piece

Arm rest                      1 pair

Foot switch                   1 piece

Clamp                       1 pair

Note：Mattress made from mould, with no seam on the surface.
